Edge banding machine Automatic MA 6 K
(precise trimming unit with cutting sheers)
Edge banding machine Automatic MA 6 P
(precise trimming unit with milling tool for R2 or straight trimming)
MINIPROF Automatic MA 6 is our top series of MINIPROF edge banding machines offering many thoughtful and oftentimes unique solutions that guarantee high quality of edge banded pieces and maximum comfort while working.
A perfect craftsmanship, as well as high-quality and quick service, including consulting, will surely guarantee you a long lasting satisfaction.
Details / Accessories / Outfit / Design of the machine
- A unique, extremely solid machine construction of steel, cast iron and hydro concrete provides high quality and toughness of the machine.
- Thanks to its 580 kg of weight, all impacts are eliminated, which guarantees constant accuracy of the machine adjustment and high quality of edge banded pieces.
Standart accessories of AUTOMATIC MA 6
Pre-milling unit
- An unrivalled system of pre-milling enables using only one milling tool, which reduces operating and maintenance costs.
- The rear pneumatic contact pressure prevents chipping off and damaging the end of the edge banded piece.
GLUE APLYING UNIT – removable glue pot for hot melt adhesive
- The patented MINIPROF application unit enables the machine to operate without the necessity of lubrication.
- Easy regulation of the amount of adhesive to be applied on the piece from 10 – 60 mm.
- Pre-springing of the application unit enables effective application of the correct amount of adhesive to the piece.
- MA 6 and MA 8 machines have a removable glue pot in the standard version, with an option to purchase next glue pots
NEW – removable glue pot for adhesive with preheating
- The new system of removable Teflon-coated trays for adhesive for Automatic MA 6 and MA 7 machines enables easy replacement of adhesives in all colours and types according to the customer’s requirements in a quick, safe and efficient manner.
- The system is ideal for custom edgebanding with different decors in a high quality and always with a correct colour of the hot melt adhesive. Replacing glue pot with adhesives is a matter of several seconds also due to the Teflon finish.
- The heating station permitting preheating of a spare glue pot to a selected temperature is part of delivery of the spare glue pot for adhesive. With this system, the adhesive can be ready to use immediately after insertion into the machine.
Rough trimming
- For trimming band up to 3 mm thickness.
- Swinging-type placing of the aggregate guarantees smooth cutting of the band while the machine is running, without any delay of the edge banded piece during cutting.
PRESSURE UNIT
- 3-roller pressure zone with copying
- It includes 2 fixed pressure rollers, 1 copying roller and elevated guiding of the band for its even gluing to the piece.

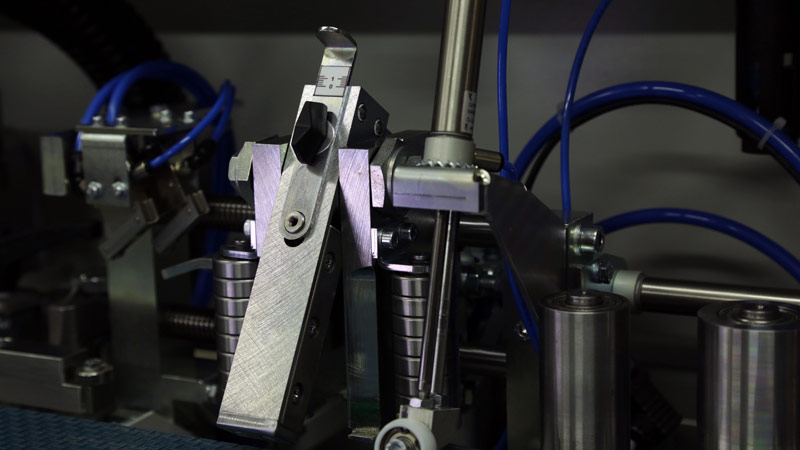

Precision trimming with spraying of the trimming blade - version MA 6K
- Automated trimming aggregate with possibility of fine tuning of the cut is characterized by high toughness and precision.
- The trimming aggregate is equipped with automatic spraying of the trimming blade. Correct dosing is controlled by PLC unit. This solution prevents the trimming blade and the whole unit to become clogged with adhesive and enables the machine to work without unpleasant delays due to cleaning.

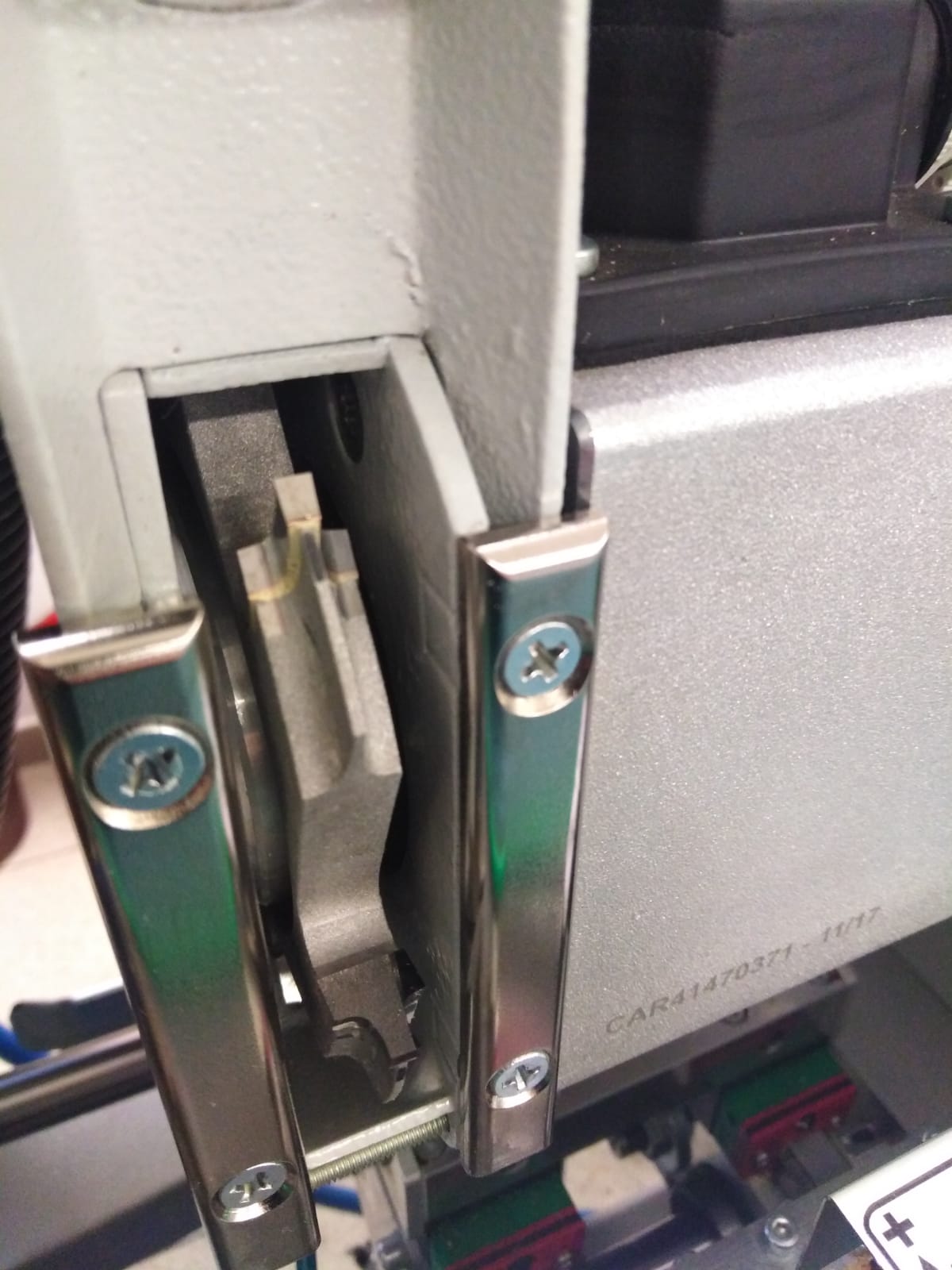

PRECISION UNIT WITH MILLING TOOL R2 PROFILE / STRAIGHT CUT (version MA 6P – vertical rounding)
- Aggregate for precison trimming with the posibility for choosing eather straight cut or R2 profile milling (vertical rounding).
- The most sold version of MA 6
MILLING UNIT WITH VERY FAST ADJUSTMENT
- A unique and simple method of MINIPROF revolving adjustment reduces the time necessary for readjustment of machine for different band thicknesses to less than 1 minute.
- Fine tuning enables maximum accuracy of edge banding.
- Easy replacement of cutting knives
- Within several seconds you can adjust precise milling of facet of 45° with thin edges or easily and precisely adjust R2 radius with run-out and thus cut 1 mm edges, which is very popular and great for high gloss materials.

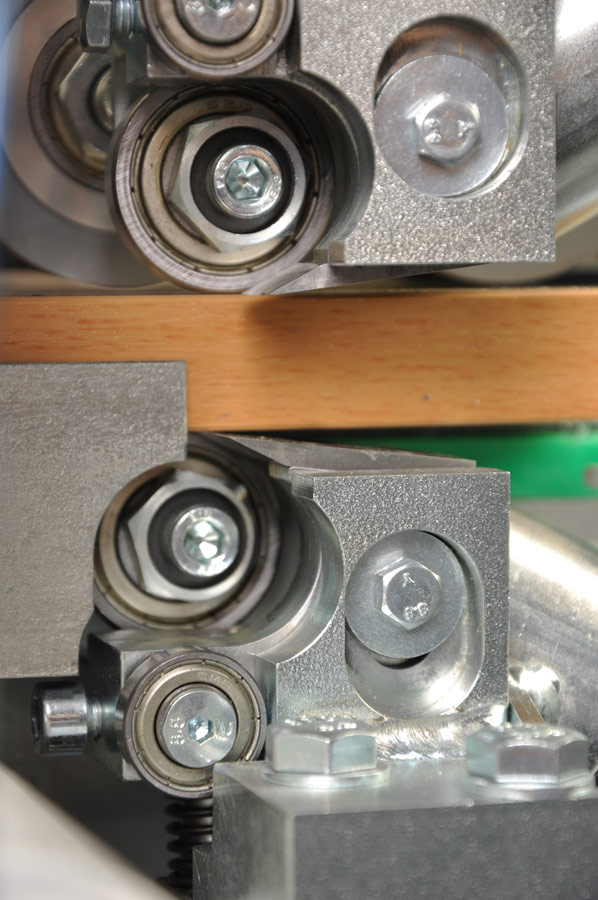

Surface scrappers for the finishing touch
- The functions of upper and bottom surface scrappers are the last, but not least important part of the edge banding process.
- Scrappers with fine tuning guarantee perfect result.
- Scrappers are replaceable with possibility of their regrinding and repeated use.

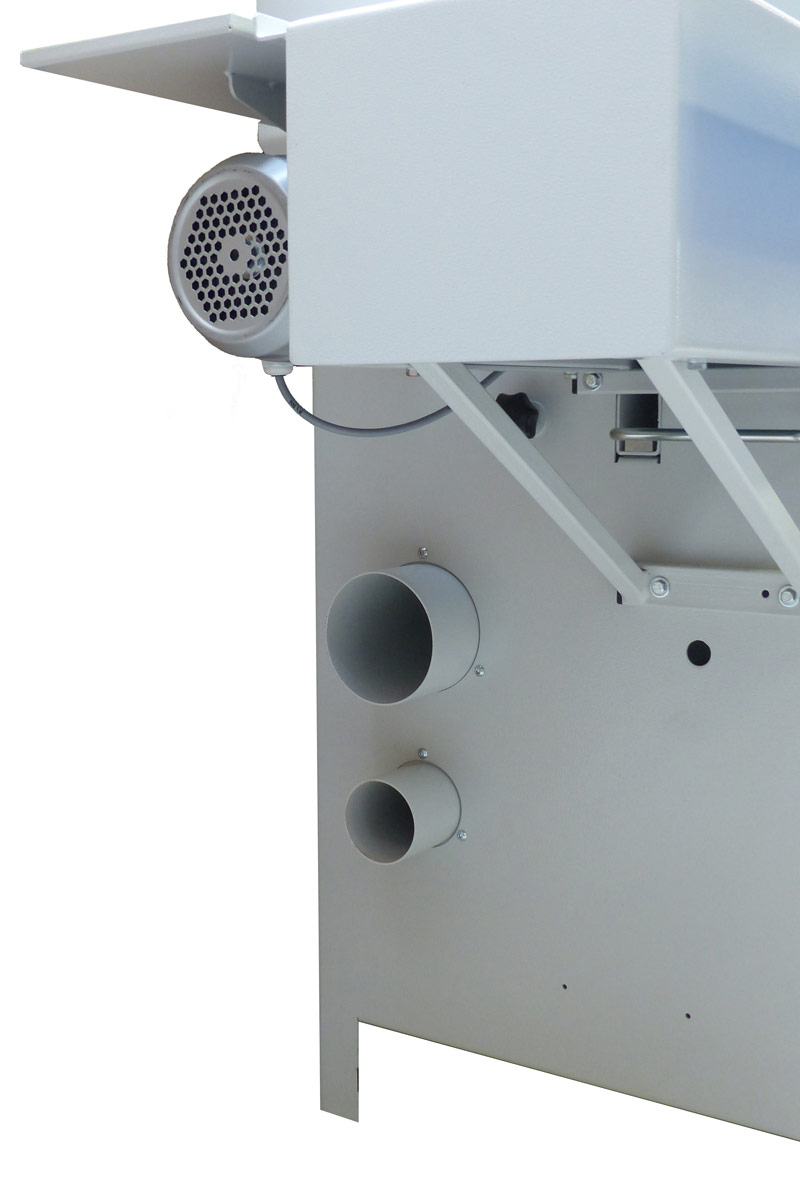

Machine suction system
- The suction system is highly effective because of elaborated sheathing of individual tools and provides very efficient removal of excess milled material.
- The machine stays clean all the time, which significantly increases the labour effectiveness and resulting quality of the edge banded pieces.
- Sheared off residues of edges are taken into a collecting container at the rear part of the machine and do not pile up in the machine’s interior.
- Their complicated removal and mess around the machine thus become a thing of the past.

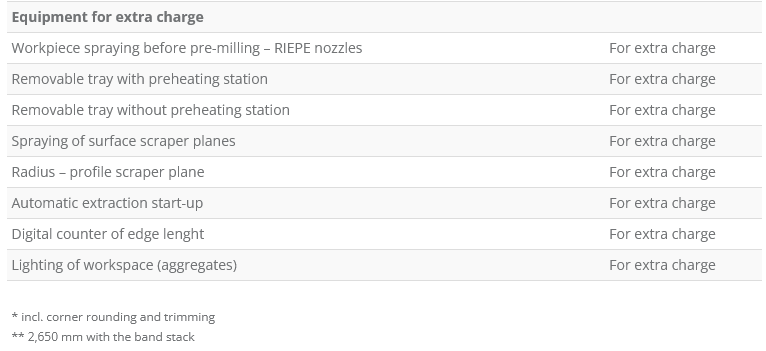

Additional accessories
Removable tray with preheating station
- Purchasing the tray with preheating station is required if the customer does not already have the preheating station
Removable glue pot without preheating station
- Serves as an additional (more) spare glue pot
- Purchasing the glue pot is possible if the customer already has the preheating station
- For inserting the replacement glue pot with adhesive into the machine it is necessary to preheat the adhesive inside the inserted glue pot
RIEPE spraying system before pre-milling station for perfectly clean workpiece – especialy for PUR hot melts (highly recommended)
- State-of-the-art RIEPE system of spray nozzles is used by all major global manufacturers of edgebanding machines. It is located before the pre-milling station.
- An electronically controlled spraying unit applies a very thin layer of release agent through RIEPE nozzles directly to the top and bottom face of a workpiece. Release agent prevents the surplus adhesive to adhere to its surface and ensures a perfectly clean surface. The need for any final cleaning of the workpiece is significantly minimized, which prevents increase in the production costs.
- Due to the very economical system of application, RIEPE guarantees a minimum release agent consumption which will not have any adverse effects on the operating costs (1 litre of release agent per up to 5000 metres of a workpiece per one RIEPE nozzle).
- RIEPE system saves you time and money. HIGHLY RECOMENDED FOR PUR HOT MELTS.

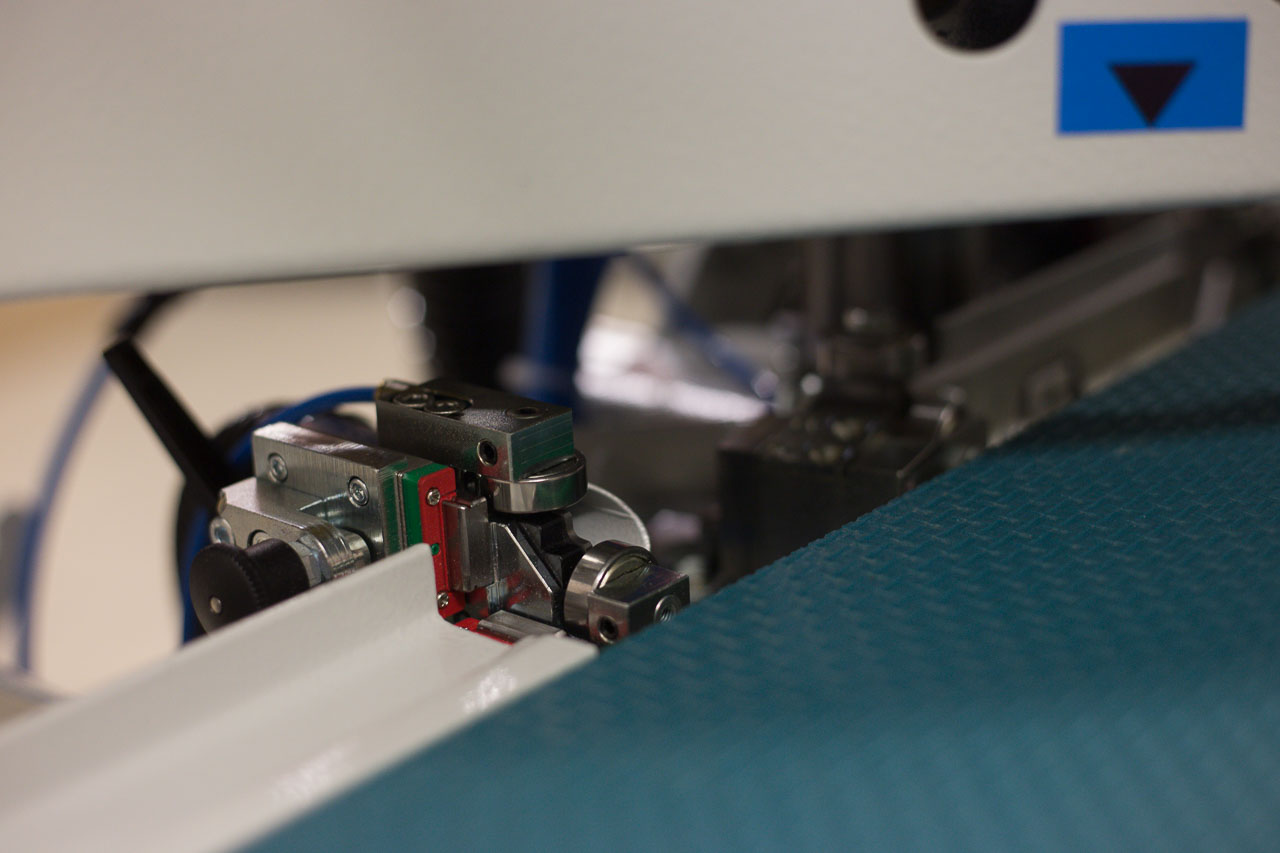

Radius – profile scraper plane with blowing
- Radius – profile scraper plane is new to Miniprof machines
- It removes any marks of the milling cutter knives and maximally refines the edge surface
- Possibility to install as addtional accessories

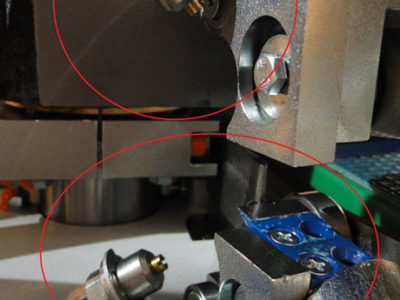

Automatical cleaning and lubricating of surface scraping unit
- works automatically and sprays the cleaner direct on scraping knives
- quarantee perfectly clean workpieces without the necessity for additional cleaning
- steering through pneumatic system
Digital counter of consumed tape quantity
- records the total lenght of consumed tapes
- records the lenght of consumed tape + option reset
The automatic extraction start-up unit
- provides an immediate and automatic start of the extraction unit connected to the edgebander
Folding workbench extensions
- The extension of the work table is another of the "advantages" for the MINIPROF AUTOMATIC edge banders, which will significantly facilitate the handling and gluing of mainly long and heavy parts.
- Arms that can be folded out in case of gluing larger parts. Set of 2 (for the right and left side of the machine)
- Promo video - tap here
Sheet metal Y piece for extraction 200 mm/1 x 120 mm and 1 x 80 mm
- is used for leading the two above extraction branches into one branch with a diameter of 200 mm (hose connection)
Wheels especialy for small workshops
- special load-bearing wheels enable the machine to be moved in the event of a confined space in the workshop and significantly increase comfort when working on the edge banding machine.
- all wheels are equipped with a lock
Pull-out extension table
- It is placed on top quality hardened bars with 40 mm in diameter guaranteeing a long service life.
Revolving adjustment of milling aggregates for different band thicknesses
- A unique and simple method of MINIPROF revolving adjustment reduces the time necessary for readjustment of machine for different band thicknesses to less than 1 minute.
- Fine tuning enables maximum accuracy of edge banding.
Unwinding storage system of vertical feeding
- This solution saves space around the machine; the machine can be pushed almost to the wall.
- Up to 3 coils of edge band can be placed into the storage bin at once.
Easy-to- use and well-arranged control panel
- Provides maximum comfort while operating the machine
- It is possible to switch off individual aggregates (ON/OFF of precision and rough trimming and pre-milling unit).
- Digital thermometer for reliable monitoring of the correct glue temperature.
Wide feeding belt
- Provides high quality and precise guiding of the edge bended piece.
Height adjustment according to the panel thickness
- Numerical indicator of the position (height) of the pressure guiding arm provides precise adjustment according to the given thickness of the edge banded piece.
Driving units of the machine
- MINIPROF machines are fitted with components of the most renowned world manufacturers (Lenze, Teknomotor, Siemens, Pneumax and the like).
Servicing of MINIPROF machines
- As a Czech manufacturer of edge banding machines, we care about quick and reliable service
- Our service team will repair any defect anywhere in Czechia or Slovakia immediately during the first visit!
- 99 % of all spare parts are available in stock
- We provide warranty and post-warranty service of all products
- Own network of sales representatives operating throughout Czechia and Slovakia
